Shiloh Cabinetry

Richmond
10' X 10' Kitchen Cabinet
Cherry | Plain Cut
Partial Overlay • Satin • Stained
Made In USA

$6,09122 $7,70552
Shipping calculated at checkout.

NOTE: Available only Tri-State area! Shiloh Cabinetry individual products are not sold online.
COLOR: BOURBON

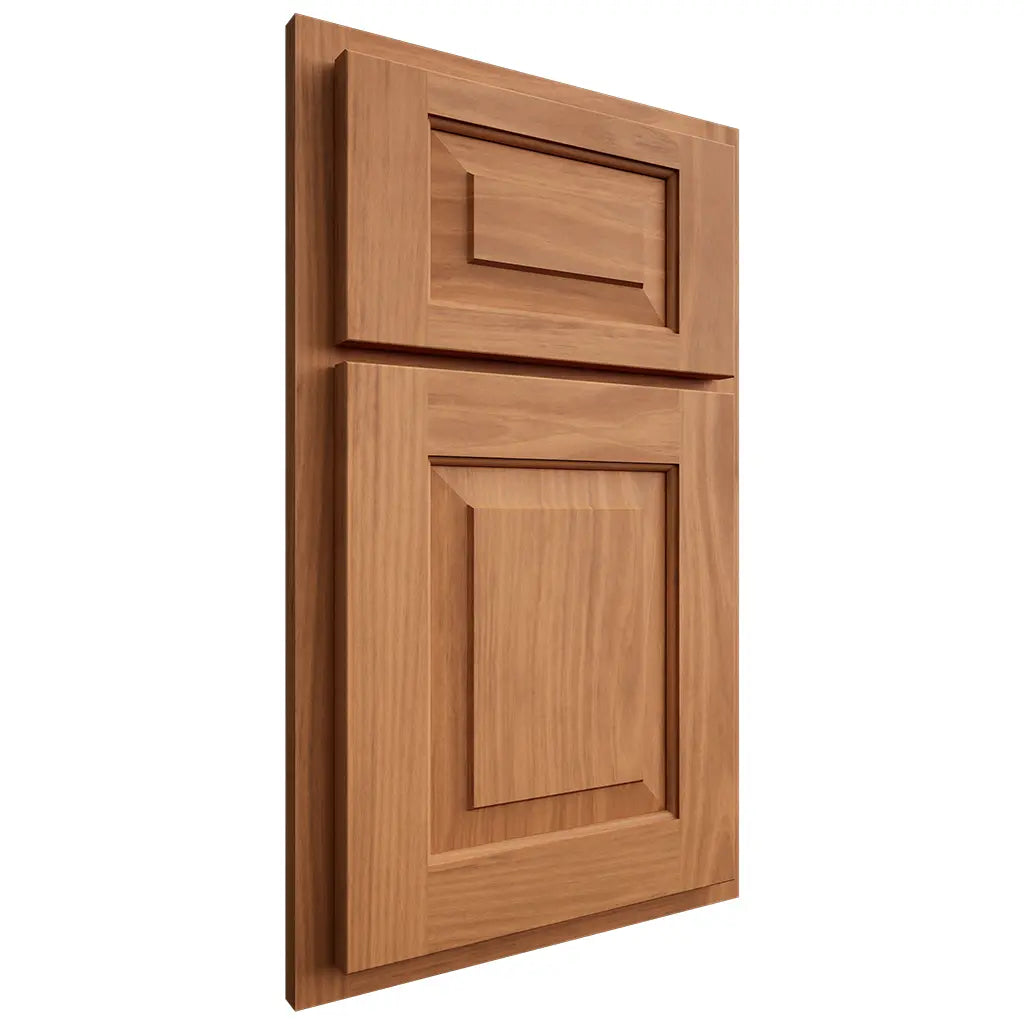

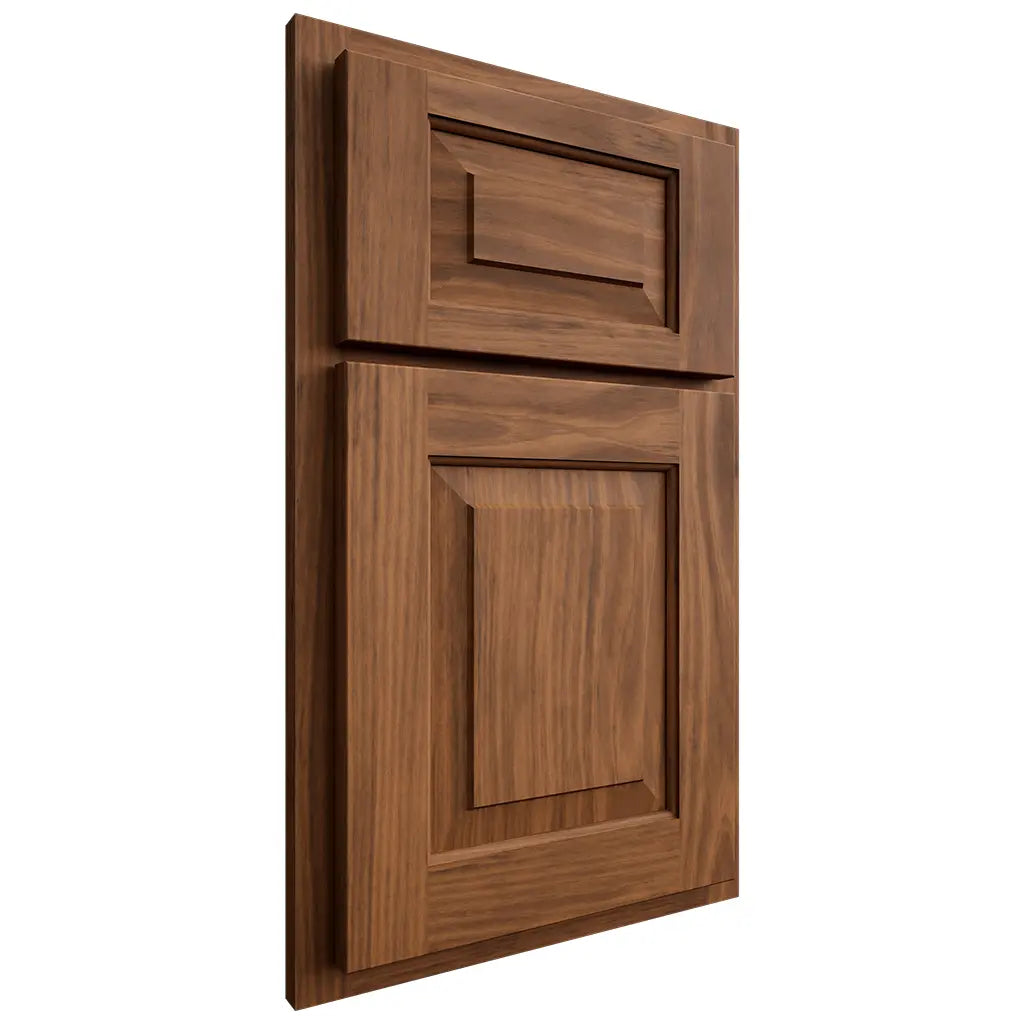

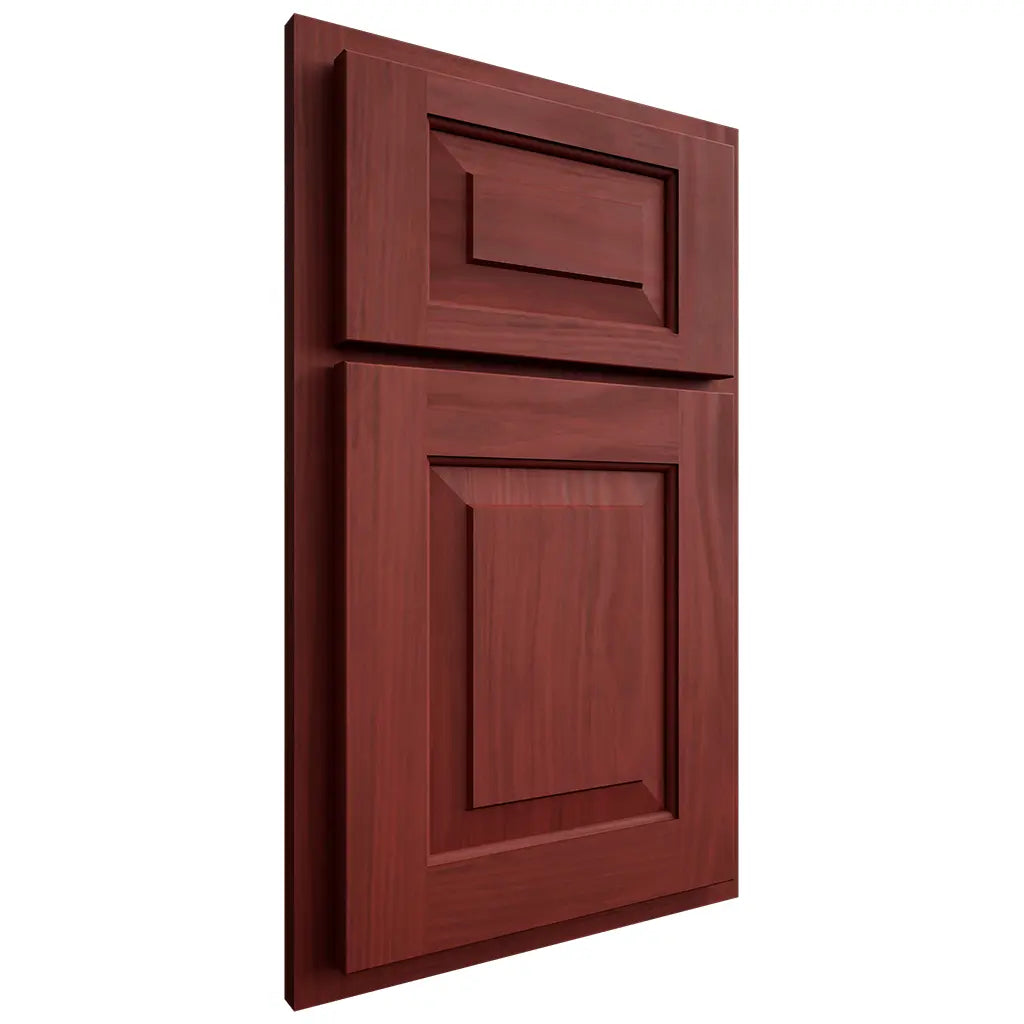

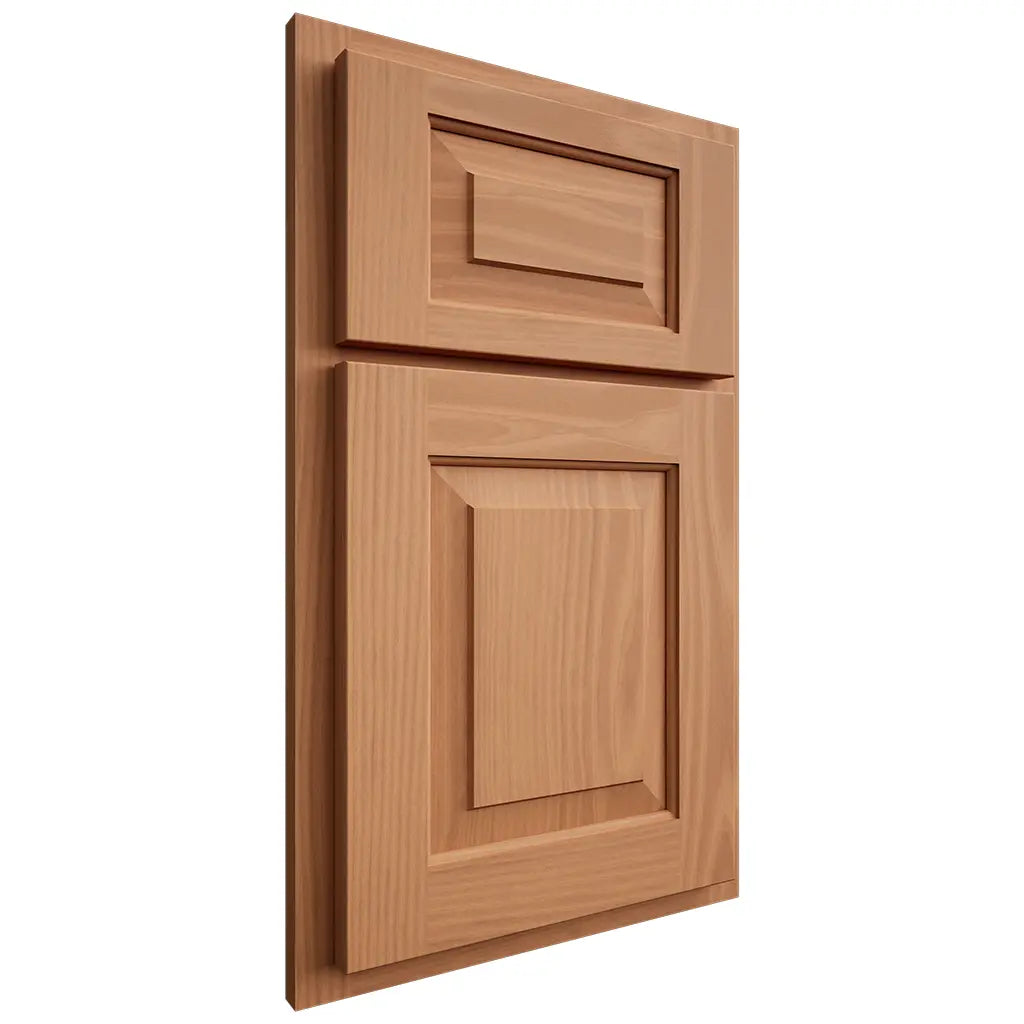

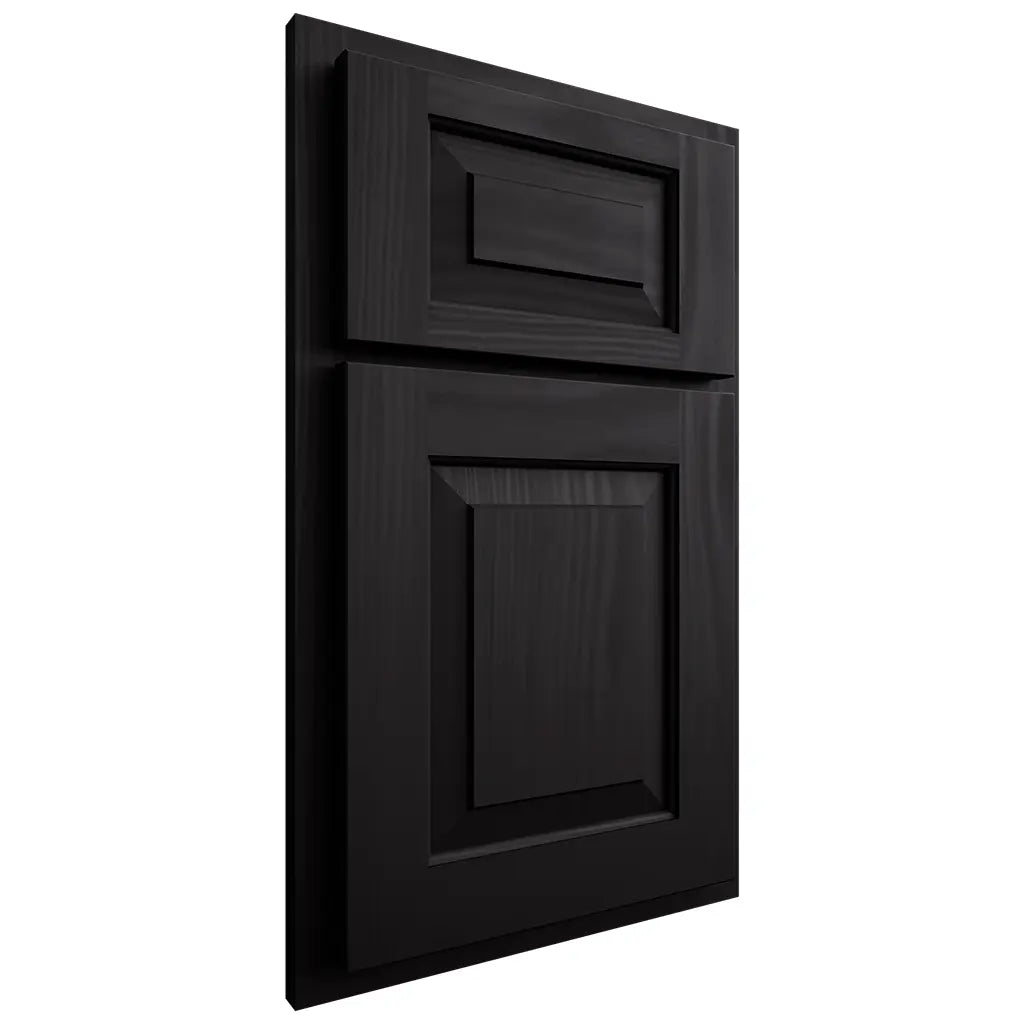

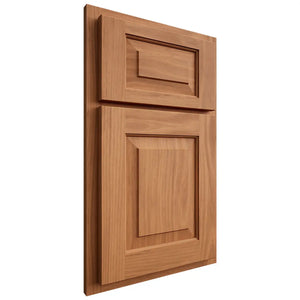

DOOR
  • Joinery: Mortise and Tenon
  • Rail Size: 2-1/2"
  • Stile Size: 2-1/2"
  • Construction: Multi-Piece
  • Center Panel: Raised

DRAWER
  • Joinery: Dovetail Drawer Boxes.
  • Thickness: 5/8” Dovetail Drawer Boxes - 5/8” finger jointed mixed hardwood headers & sides with 1/4” bottoms.
  • Size: Dovetail drawer heights are 3”, 4”, & 7” tall.

BOX
  • Interior: Sides are 1/2” plywood and 3/8” plywood floors. Interior parts are laminated to provide a smooth, durable interior.
  • Sides: Finished ends for cabinets are matching hardwood veneer on 1/4” substrate panel.
  • Face Frames: Face frames are constructed of solid 3/4” kiln dried lumber. Side, top, and bottom stiles are 1 1/2”, Intermediate stiles are 3”.
  • Construction: Frames drilled, glued, and joined by screw type fasteners to provide a strong durable joint.
  • Shelves: All shelves unless otherwise specified are fully adjustable with full depth shelves in wall cabinets, and half depth in base cabinets. Adjustable shelves are constructed of 3/4” plywood and supported by steel shelf pins.

FINISHING
  • Appearance: Close-grained hardwood often showing pin knots and wave/curl patterns. May include small sap pockets, mineral streaks, and areas of white sapwood.
  • Color: Pale yellow to deep reddish brown, sometimes with hints of white, pink, or gray. Dark stains can reduce color variation but won’t fully eliminate it.
  • Natural Color Change: Darkens (mellows) over time with exposure to light—a normal, non-defective process.

Description

Discover the timeless elegance of Shiloh Cabinetry's Richmond collection, expertly crafted with premium cherry wood to bring a touch of sophistication to any kitchen or bathroom. Featuring a traditional door design with partial overlay construction, these cabinets offer a perfect blend of classic style and modern functionality. Available in a stunning array of colors including Bourbon, Carob, Coffee, Espresso, Medium, Natural, Red, and Thyme, the Richmond collection allows you to customize your space with rich, warm tones that complement any decor. Elevate your home with the enduring beauty and quality of Shiloh Cabinetry's Richmond cabinets.

Specifications
  • Brand
    Shiloh Cabinetry
  • Style
    Richmond
  • Color
    Bourbon, Carob, Coffee, Espresso, Medium, Natural, Red, Thyme
  • Material
    Cherry
  • Wood Cut Type
    Plain Cut
  • Finish
    Stained
  • Cabinet Construction
    Partial Overlay
  • Door
    • Joinery: Mortise and Tenon
    • Rail Size: 2-1/2"
    • Stile Size: 2-1/2"
    • Construction: Multi-Piece
    • Center Panel: Raised
  • Drawer
    • Joinery: Dovetail Drawer Boxes.
    • Thickness: 5/8” Dovetail Drawer Boxes - 5/8” finger jointed mixed hardwood headers & sides with 1/4” bottoms.
    • Size: Dovetail drawer heights are 3”, 4”, & 7” tall.
  • Box
    • Interior: Sides are 1/2” plywood and 3/8” plywood floors. Interior parts are laminated to provide a smooth, durable interior.
    • Sides: Finished ends for cabinets are matching hardwood veneer on 1/4” substrate panel.
    • Face Frames: Face frames are constructed of solid 3/4” kiln dried lumber. Side, top, and bottom stiles are 1 1/2”, Intermediate stiles are 3”.
    • Construction: Frames drilled, glued, and joined by screw type fasteners to provide a strong durable joint.
    • Shelves: All shelves unless otherwise specified are fully adjustable with full depth shelves in wall cabinets, and half depth in base cabinets. Adjustable shelves are constructed of 3/4” plywood and supported by steel shelf pins.
  • Finishing
    • Appearance: Close-grained hardwood often showing pin knots and wave/curl patterns. May include small sap pockets, mineral streaks, and areas of white sapwood.
    • Color: Pale yellow to deep reddish brown, sometimes with hints of white, pink, or gray. Dark stains can reduce color variation but won’t fully eliminate it.
    • Natural Color Change: Darkens (mellows) over time with exposure to light—a normal, non-defective process.
Free
Kitchen Design

Payment & Security

Payment methods

  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Editions
Richmond

  • BASIC 360°

    The Basic Edition offers fundamental functionality with high-quality materials, focusing on essential kitchen needs in a streamlined layout.

    • 10' x 10' Kitchen cabinets
    • 30" High wall cabinets
    • Toe kick panels
    $ 6,09122
    SELECT

  • STANDARD 360°

    The Standard Edition adds extra features like enhanced storage and advanced fixtures to the basic setup, using the same premium materials for added convenience.

    • 10' x 10' Kitchen cabinets
    • 36" High wall cabinets
    • Crown moldings
    • Toe kick panels
    $ 7,12050
    SELECT

  • PREMIUM 360°

    The Premium Edition provides a luxury kitchen experience with top-tier appliances and innovative design elements, maintaining consistent material quality across all editions.

    • 10' x 10' Kitchen cabinets
    • 42" High wall cabinets
    • Crown moldings
    • Cabinets flush with 8-foot ceiling
    • Light rail moldings
    • Decorative Doors
    • Base moldings
    $ 8,98482
    SELECT
